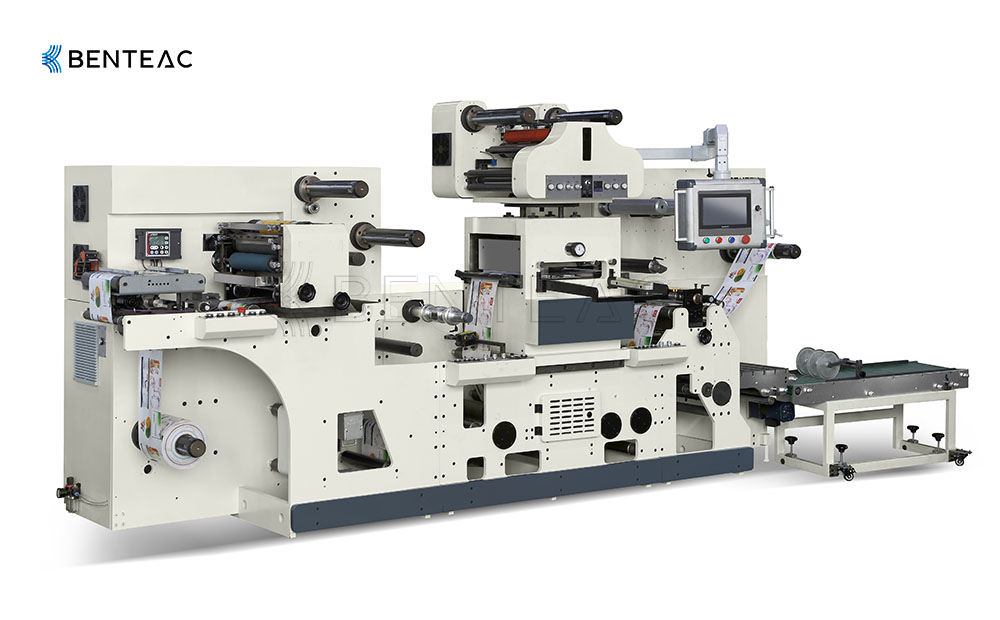

Label Flexo Printing and Flat Die Cutting Machine Line.In addition to the standard die-cutting function, this machine can also be equipped with screen printing, flat ironing, round ironing, polishing and cold ironing. The modular function setting allows each function to be matched at will.
Brief Introduction：
Label Flexo Printing and Flat Die Cutting Machine Line.In addition to the standard die-cutting function, this machine can also be equipped with screen printing, flat ironing, round ironing, polishing and cold ironing. The modular function setting allows each function to be matched at will.
|
Modelis |
Dragon -330 |
|
Max effective paper max-width='100%' width |
330MM |
|
Max unwinding dia |
700mm |
|
Max rewindinng dia |
700mm |
|
Registration |
Sensor |
|
Die cutting &hot stamp area |
320*350mm |
|
Die cutting speed |
400rpm/min 120M/minutes |
|
Air supply |
0.4-0.6pa |
|
Dimension |
5650*1510*1820MM |
|
weight |
8000 kgs |

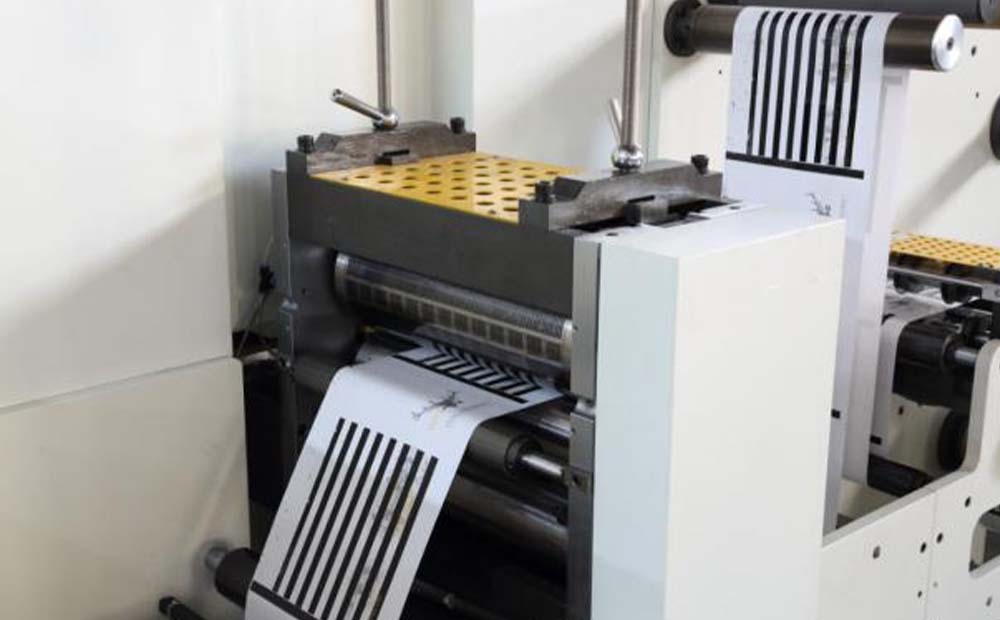

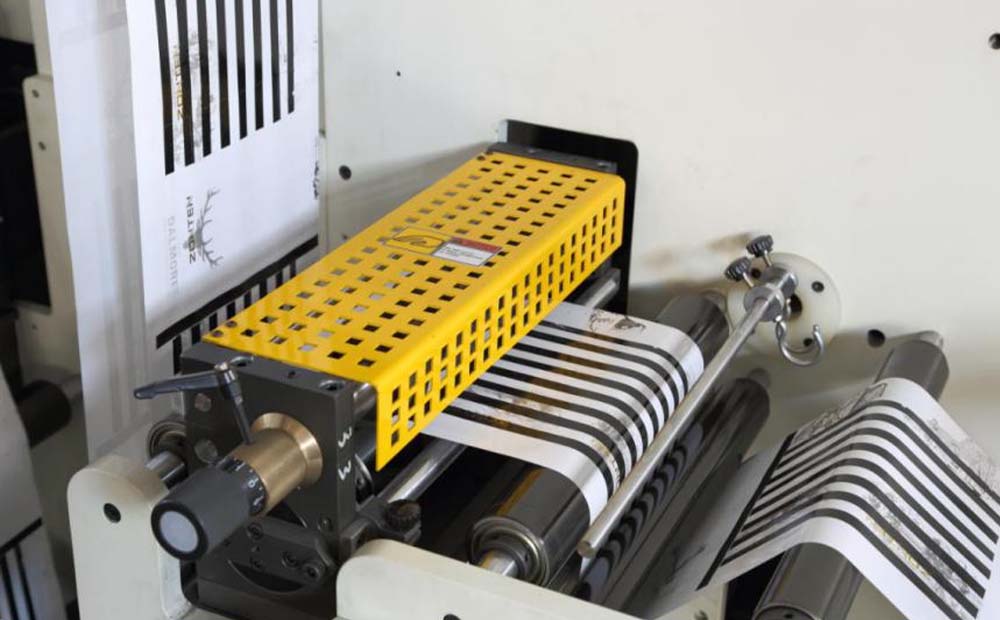

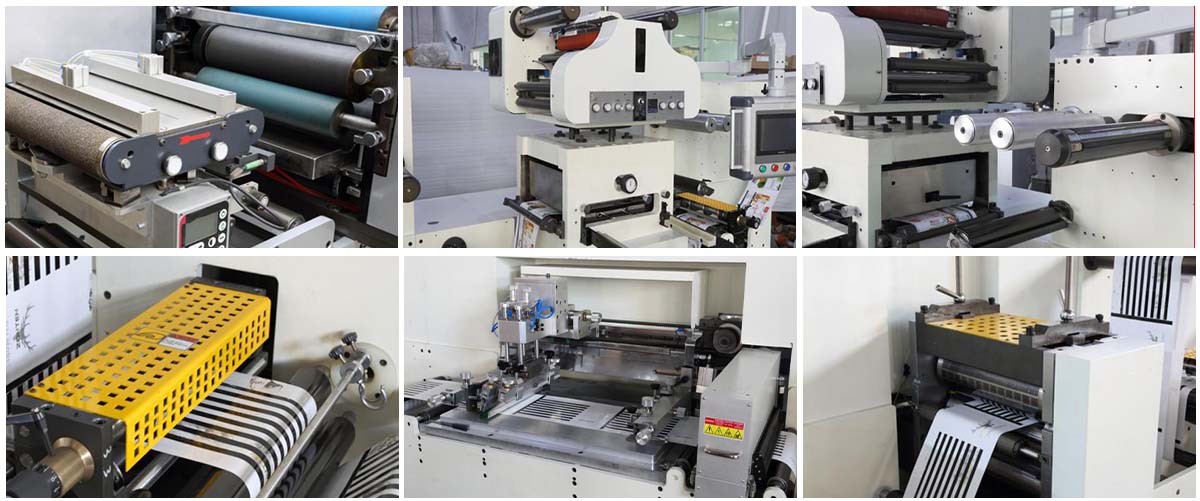

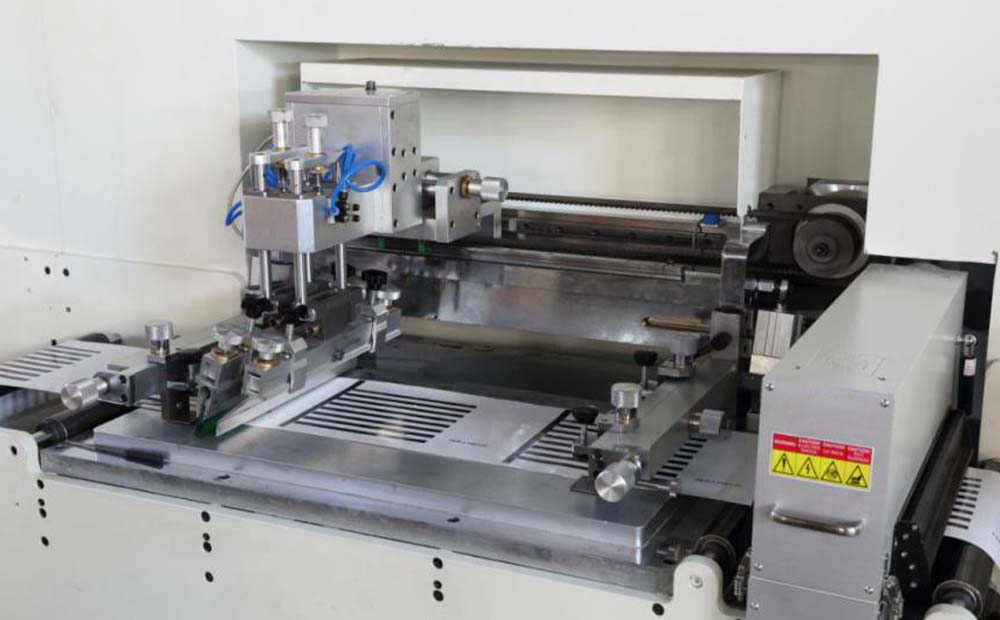

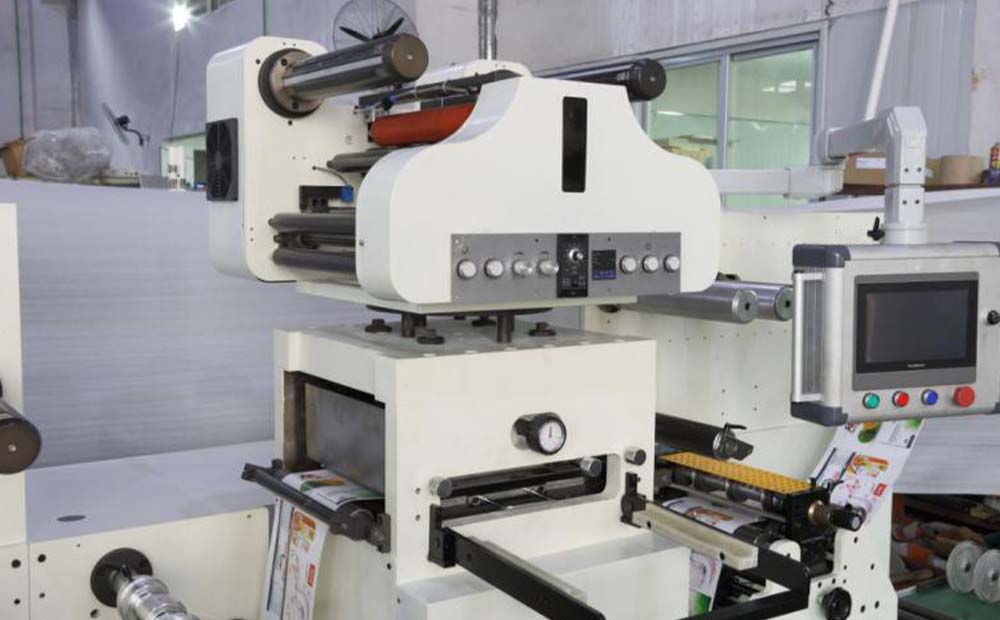

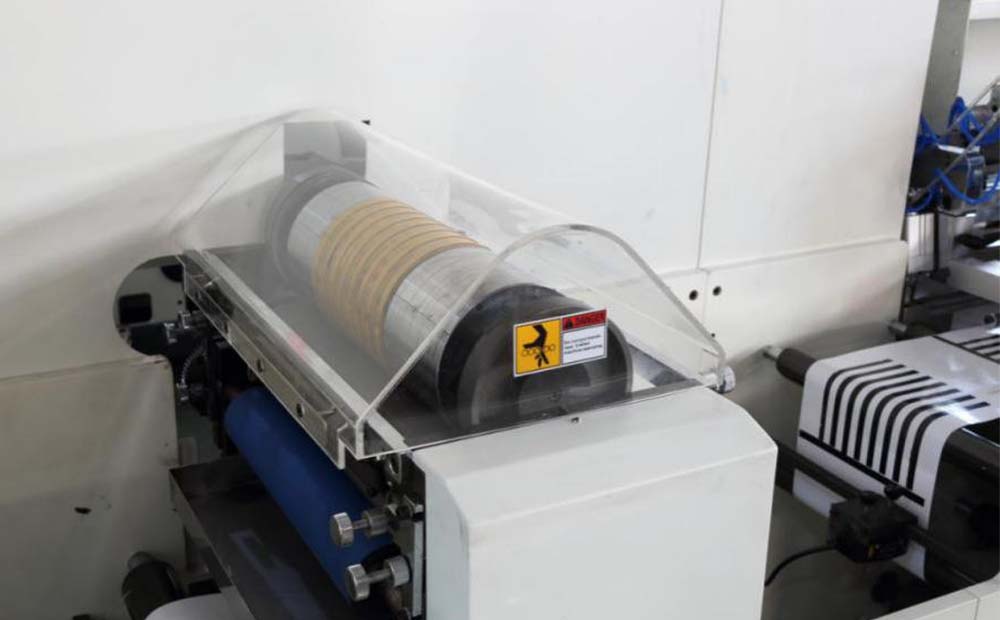

Machine Detail Pictures:
This machine is flat& flat structure,with a computer servo system for paper pulling,the material is tracked and positioned on both sides and longtitudinally by photoelectric eye. Unwinding-die cutting-waste discharge-slitting or rewinding are completed at one time.
Characters: 1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor. 2. FullServo driven with exact web tension control,easy to operate,Minimizes waste. 3.Internet fault diagnostics. 4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc. 5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
