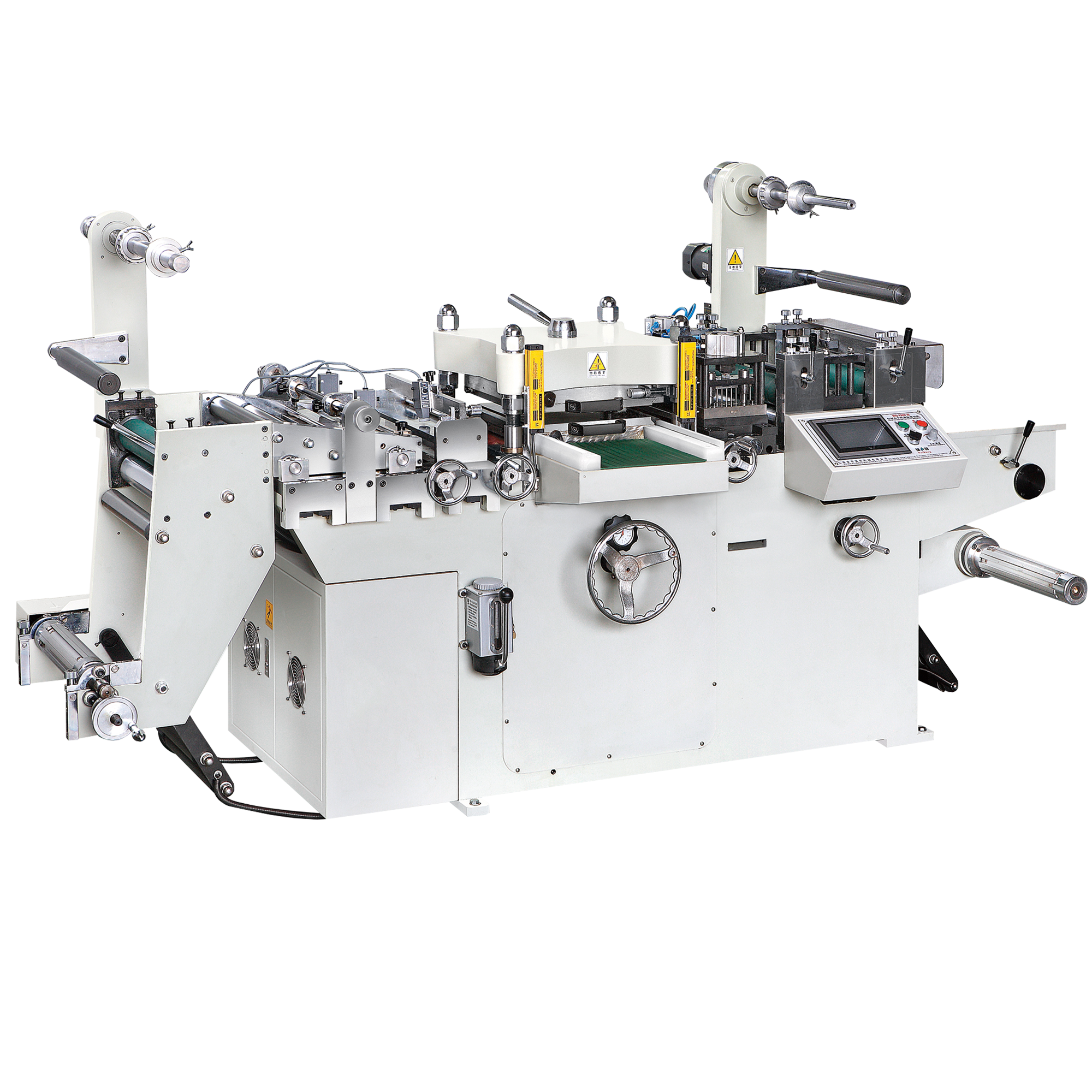

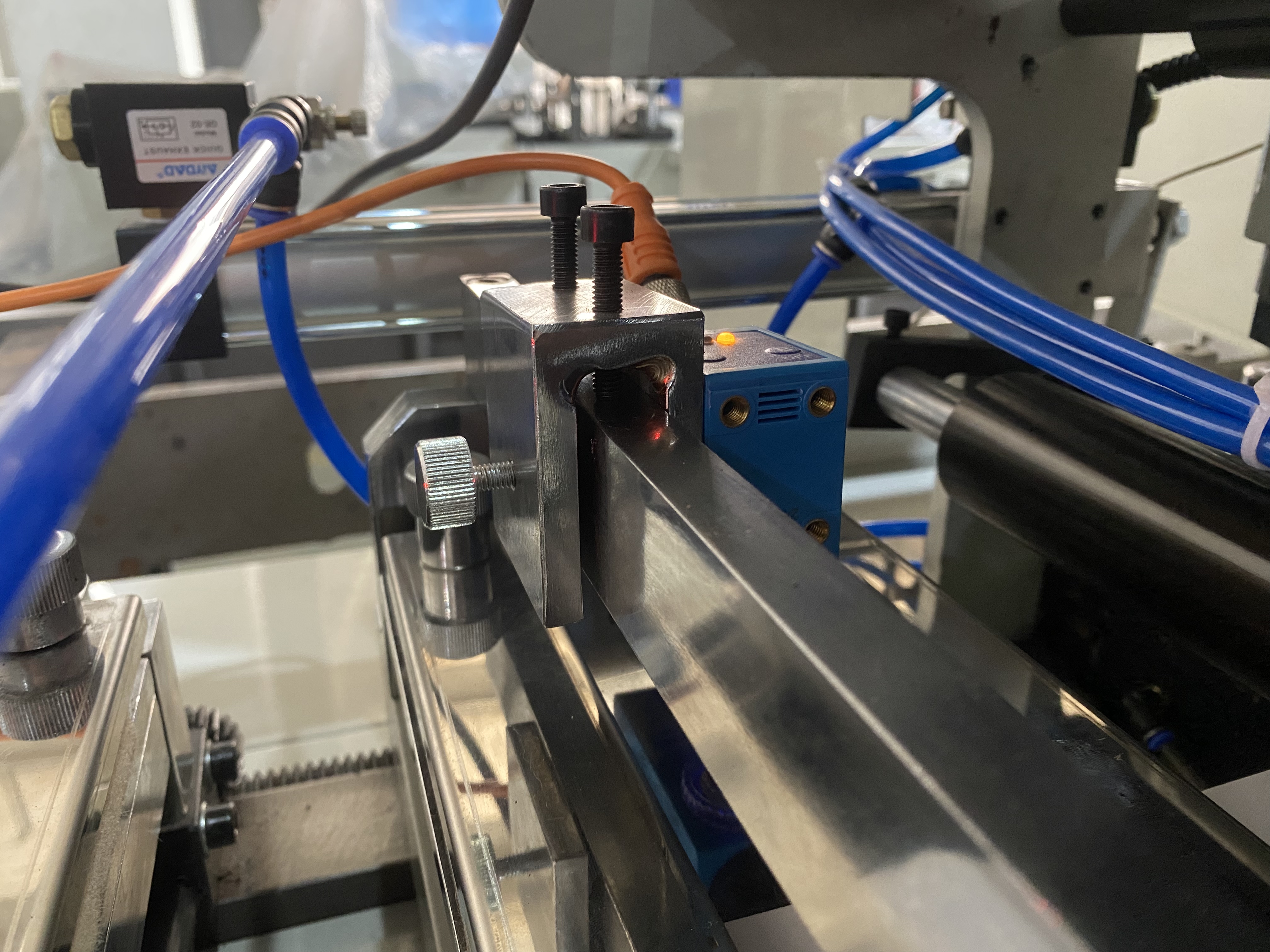

This machine is flat& flat structure,with a computer servo system for paper pulling,the material is tracked and positioned on both sides and longtitudinally by photoelectric eye.
Unwinding-die cutting-waste discharge-slitting or rewinding are completed at one time.
This machine is flat& flat structure,with a computer servo system for paper pulling,the material is tracked and positioned on both sides and longtitudinally by photoelectric eye.
Unwinding-die cutting-waste discharge-slitting or rewinding are completed at one time.
Main technical parameters
|
Model number |
GW-MQ-320 |
|
Max. die cutting speed |
300 times/min |
|
Die cutting area |
300*300mm(max-width='100%' width*length) |
|
Diameter |
600mm |
|
Jumbo roll max-width='100%' width |
300mm |
|
Width Precision |
0.5mm |
|
Length precision |
0.1mm |
|
Total Power |
4.5kw |
|
Voltage |
3 p 380v 50hz |
|
Weight |
2200kg |
|
Overall Dimensions(LxWxH) |
2.6x0.95x1.4 m |
This machine is flat& flat structure,with a computer servo system for paper pulling,the material is tracked and positioned on both sides and longtitudinally by photoelectric eye. Unwinding-die cutting-waste discharge-slitting or rewinding are completed at one time.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.

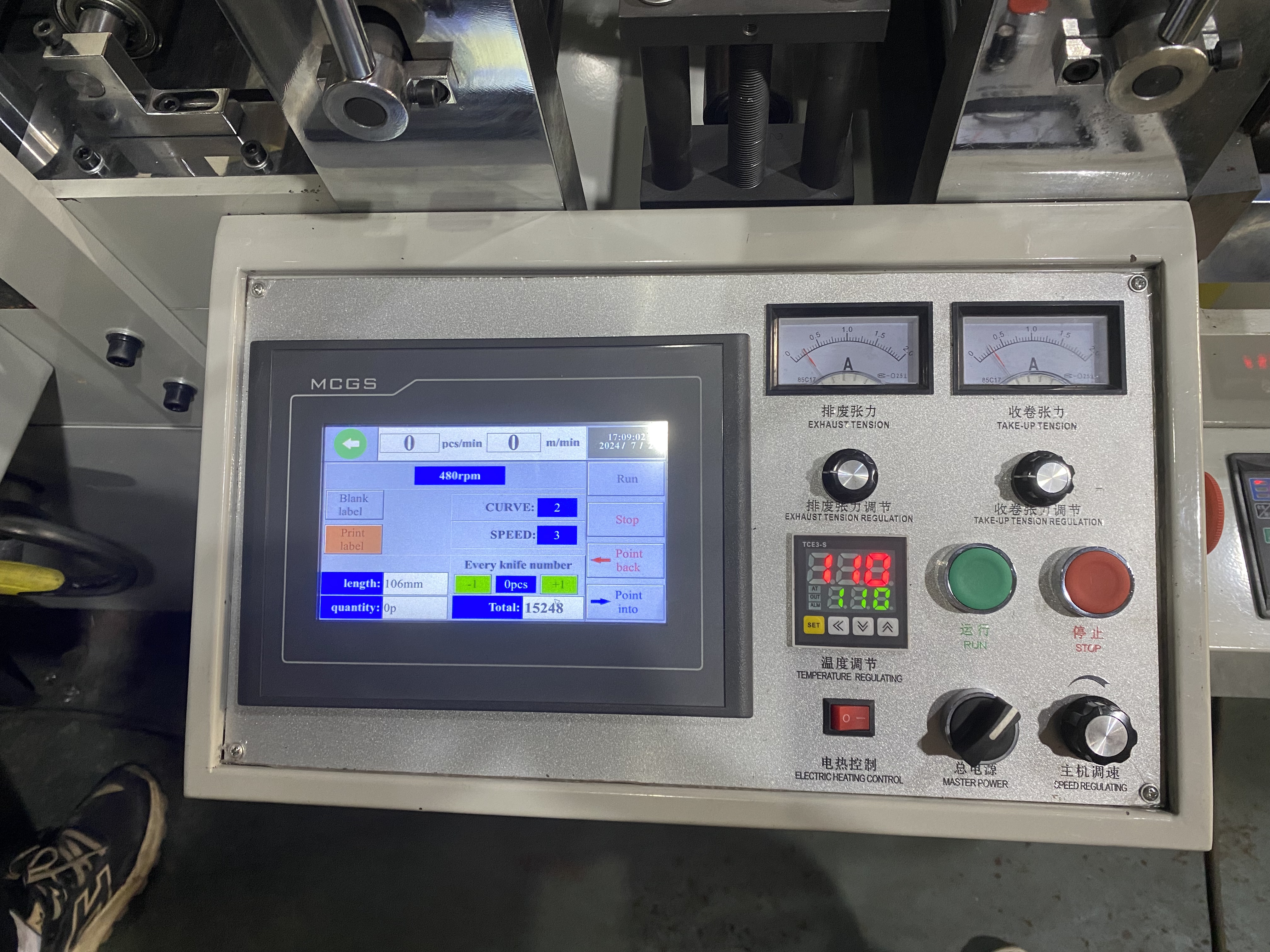

Machine description: The machine adopts integrated servo correction control system, equipped with PLC touch screen. The control panel adopts integrated control, and the operation is more convenient.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
