Characters:
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
Characters:
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
TechnicalParameter:
|
Max Paper Width |
330mm |
|
Max Unwinding Dia. |
700mm |
|
Max Rewinding Dia. |
700mm |
|
Power Supply |
AV,380V,50HZ |
|
Air supply |
0.4~0.6MPa |

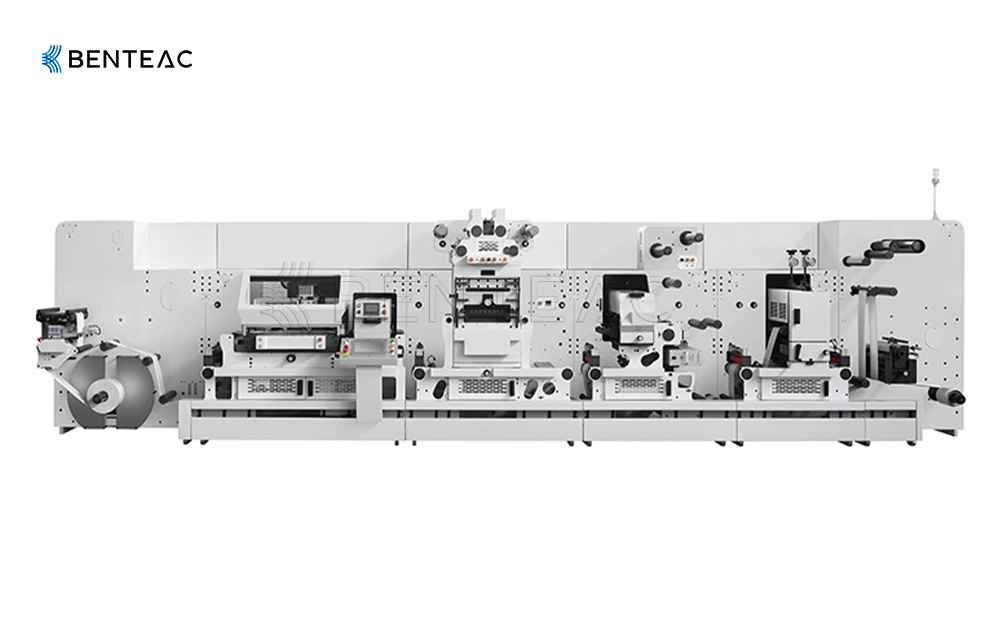

Label Flexo Printing and Flat Die Cutting Machine Line.In addition to the standard die-cutting function, this machine can also be equipped with screen printing, flat ironing, round ironing, polishing and cold ironing. The modular function setting allows each function to be matched at will.
Machine description: The machine adopts integrated servo correction control system, equipped with PLC touch screen. The control panel adopts integrated control, and the operation is more convenient.
This machine is flat& flat structure,with a computer servo system for paper pulling,the material is tracked and positioned on both sides and longtitudinally by photoelectric eye. Unwinding-die cutting-waste discharge-slitting or rewinding are completed at one time.
（1） Unwinding adopts cold ring tension control, electronic BST paper guide with ultrasonic edge guide sensor （2） The die-cutting station adopts independent Panasonic servo drive control, which can run in two states of half rotation and rotation. （3） Slitting device with two rewinding shafts （4） Combination function, can add semi-rotary flexo printing unit, realize flexo uv varnish + semi-rotary die cutting + slitting at one time. （5） Independent electric box control, movable touch screen control. （6） The rotary die-cutting machine supports remote control. Any software problems can be solved directly with a laptop computer.
