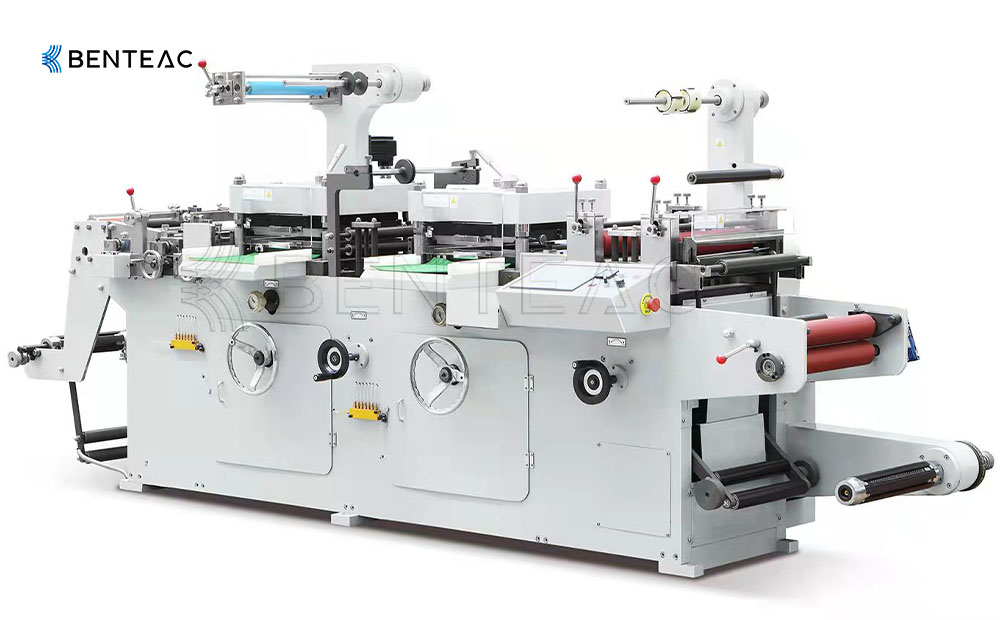

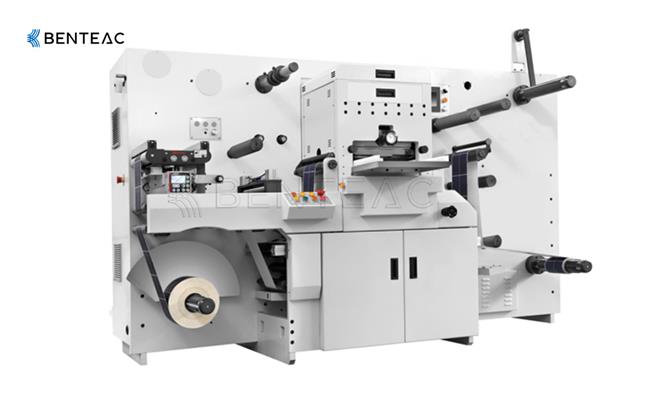

It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting,
waste rewinding and finished product rewinding are all in one process.
Main control PLC and man-machine interface, with functions such as edge detection and watch detection.
The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting.
Separate waste motor control.
Brief Introduction：
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
Advantage:
1. Human-machine integration: the machine adopts imported electrical appliances to be flattened and pressed up. Laminating, die cutting, feeding, waste discharging, slicing or reeling are completed by computer control at one time. It can be equipped with computer bronzing function. Both sides and longitudinal of the material are tracked and positioned by the optical eye. Fully automatic high-precision die cutting realizes the man-machine integrated function.
2. Scope of application: die-cutting of paper stickers trademarks, nylon film trademarks, and laser anti-counterfeiting trademarks. Suitable for die cutting and forming in the electronics industry and adhesive tape products industry.
3. Adhesive products: various electronic, electrical appliances, special pads for mobile phones, silicone stickers, Velcro, conductive adhesive, strong double-sided adhesive.
4. Dust proof materials: cosmetic cotton, camera cotton, high-density sponge, filter cotton, dust proof net, non-woven fabric.
|
Main Technical Specifications: |
|
|
Cutting Speed |
20-300m/min |
|
Max. Unwinding Dia. |
500mm |
|
Max. Web Width |
350 mm |
|
Max. Mould Cutting Width |
320 mm |
|
Max. Mould Cutting Length |
320 mm |
|
Orientation Accuracy |
±0.15 mm |
|
Total Power |
3 Kw |
|
Power Voltage |
220V±10% |
|
Weight |
About 1500 Kg |
|
Overall Dimensions(LxWxH) |
2.6x0.95x1.4 m |

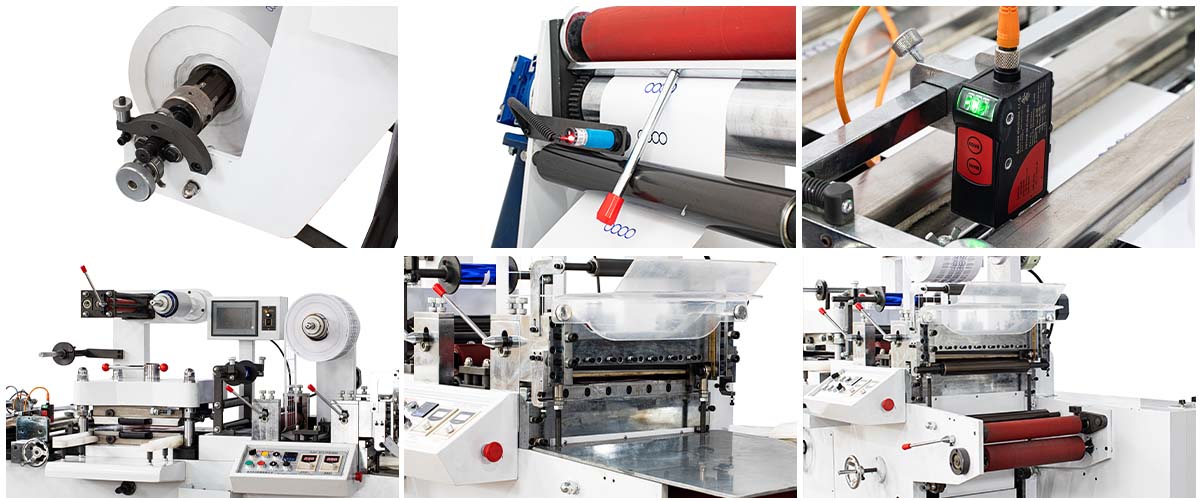

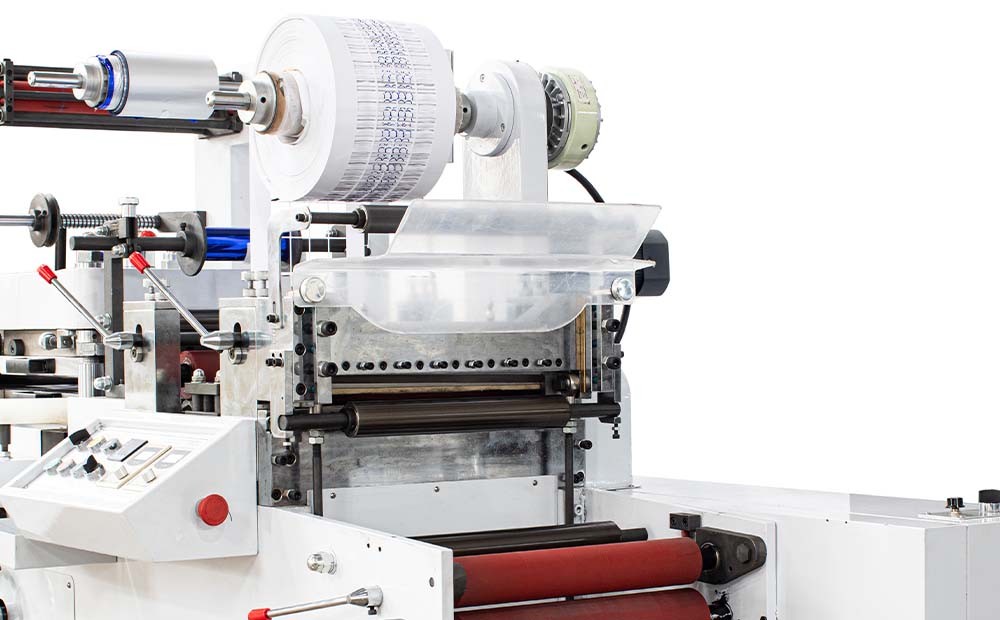

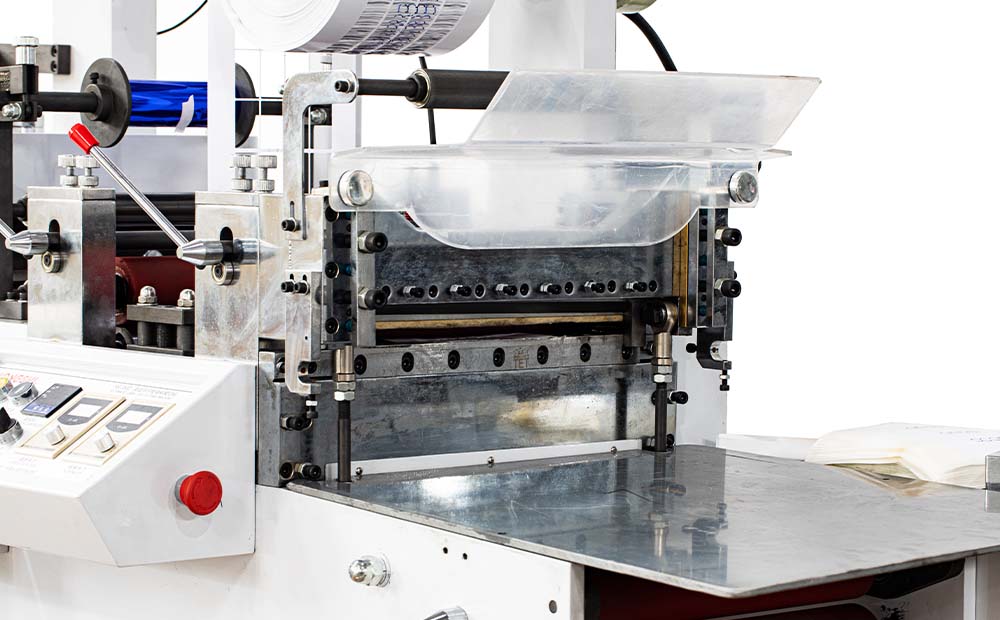

Machine Detail Pictures:
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.

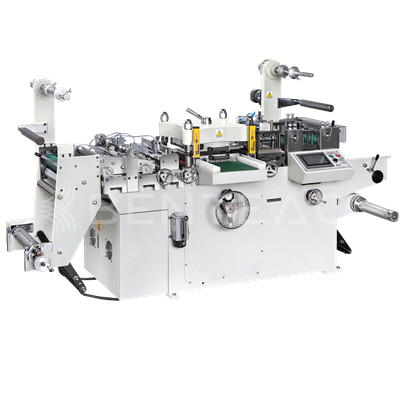

Machine description: The machine adopts integrated servo correction control system, equipped with PLC touch screen. The control panel adopts integrated control, and the operation is more convenient.

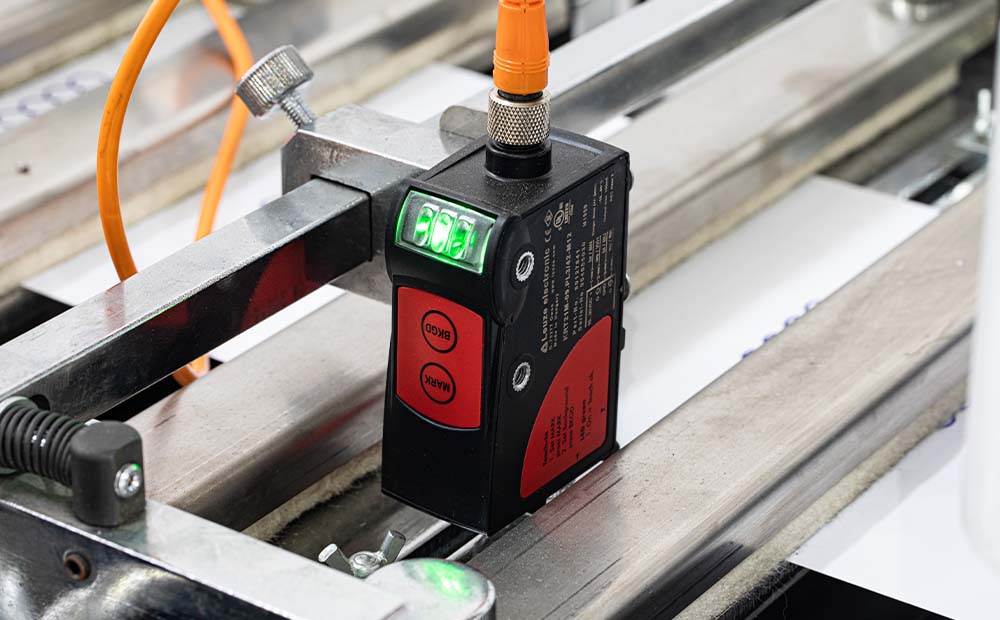

Feature: 1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste 3. Die cut station with servo register control. 4. Internet fault diagnostics . 5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )

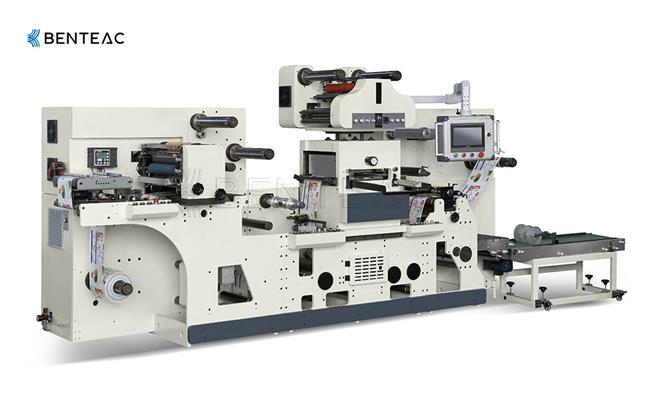

Label Flexo Printing and Flat Die Cutting Machine Line.In addition to the standard die-cutting function, this machine can also be equipped with screen printing, flat ironing, round ironing, polishing and cold ironing. The modular function setting allows each function to be matched at will.
