1. Mother reel end photocell with automatic stop.
2. Full rotary flexo printing module support sport varnishing/cold foil
3. Die cut unit able to work full rotary mode and semi rotary mode.
4. Precision cutting to reduce waste
3. Die cut station with servo register control.
4. Internet fault diagnostics .

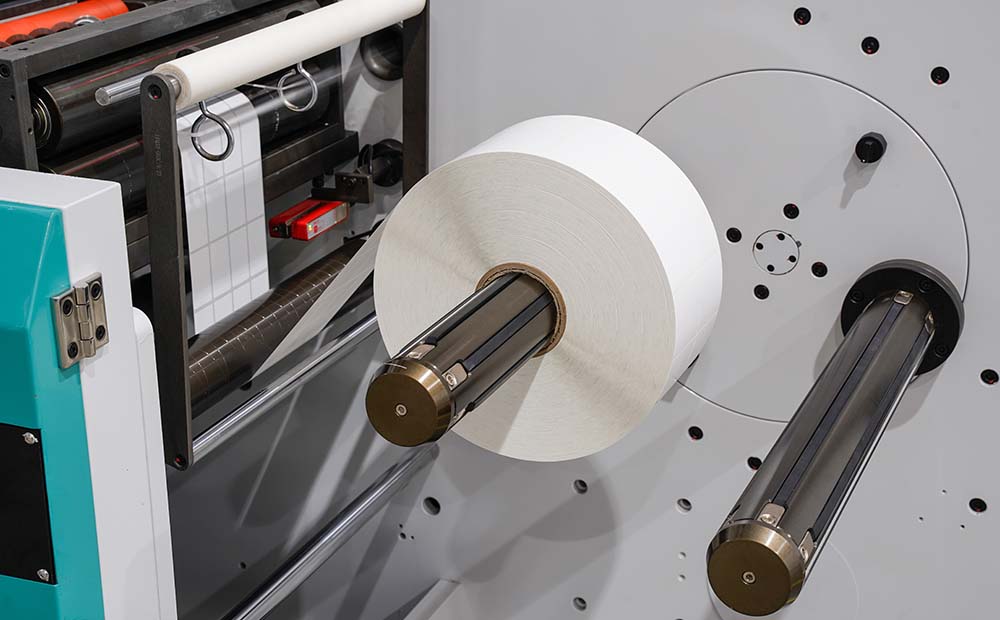

5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )
Feature:
1. Mother reel end photocell with automatic stop.
2. Full rotary flexo printing module support sport varnishing/cold foil
3. Die cut unit able to work full rotary mode and semi rotary mode.
4. Precision cutting to reduce waste
3. Die cut station with servo register control.
4. Internet fault diagnostics .
5. Dual 3”pneumatic rewinder for a max roll diameter of 450mm with independent tension control.(optional )
Main Technical Specifications:
|
Max.rotary machine speed |
110m/min |
|
Max.die cutting length |
190.5mm-539.75mm |
|
Max.Intermittent speed |
68m/min |
|
Max.die cutting length |
50-330mm |
|
Max.die cutting area |
330mm×320mm(L×W) |
|
Max. unwinding diameter |
2000meter, (diameter:700mm) |
|
Roll max-width='100%' width |
80mm-330mm |
|
Max.rewinding diameter |
3000m (Diameter:700mm) |
|
Die Cutting Precision |
±0.15mm |
|
Voltage |
AV,380V,50HZ |
|
Magnetic cylinder |
Ntermittent:120 teeth |

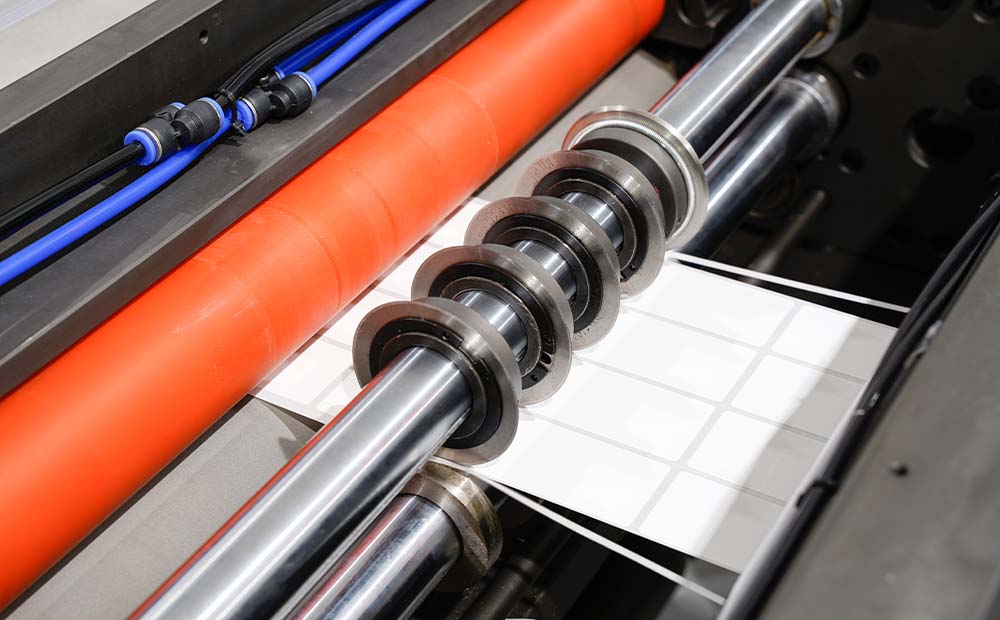

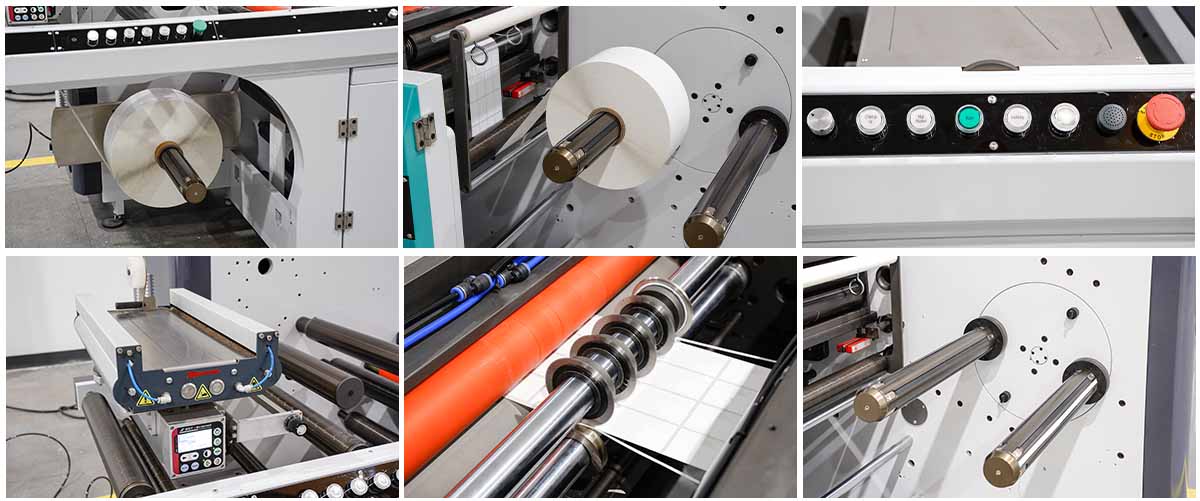

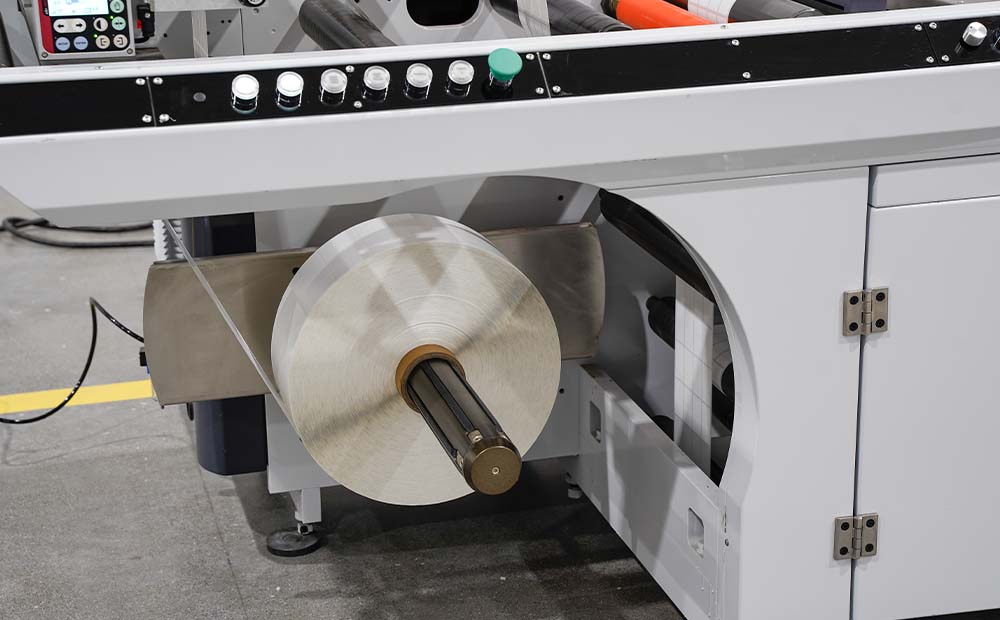

Machine Detail Pictures：
This machine is flat& flat structure,with a computer servo system for paper pulling,the material is tracked and positioned on both sides and longtitudinally by photoelectric eye. Unwinding-die cutting-waste discharge-slitting or rewinding are completed at one time.

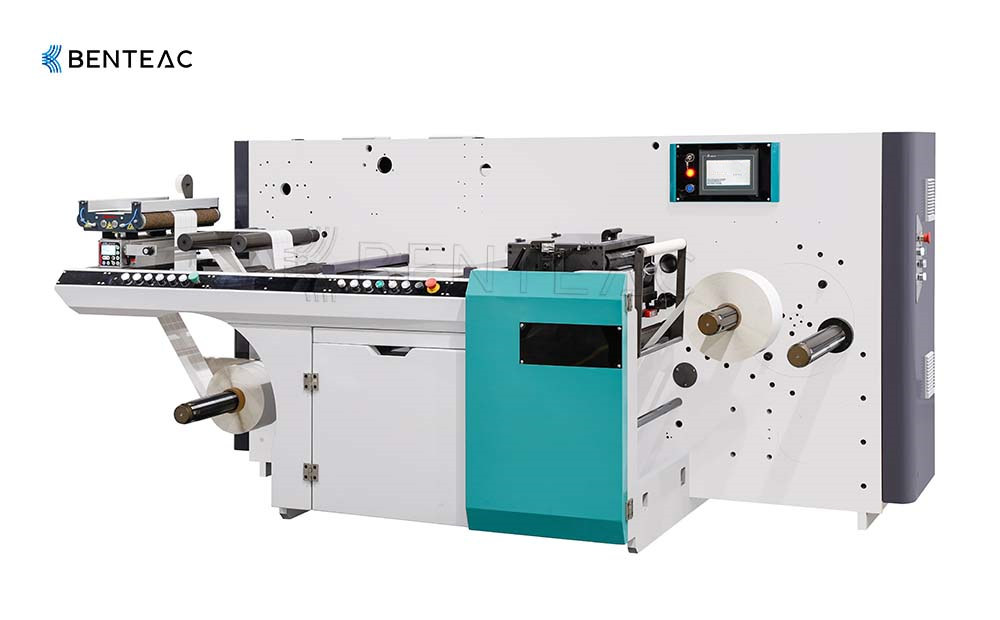

It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.

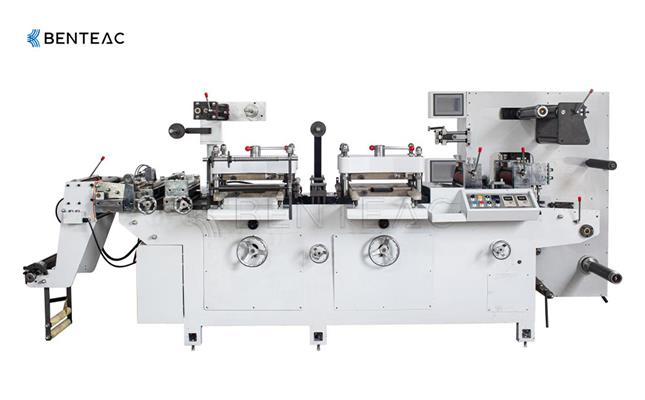

Brief Introduction： Double unit trademark die-cutting hot stamping machine adopts synchronous transmission mechanism to realize synchronous movement of two forming units. A closed drive chain drives the gripper bank to transfer the paper to two forming units in turn for hot stamping, indentation or die cutting processes. A horizontal aluminum foil control unit is added to the second forming unit to realize more product processing functions. The machine has the advantages of compact and beautiful structure, high degree of automation, easy operation, stable performance, combined optimization and flexible application. g, creasing or die cutting processes.

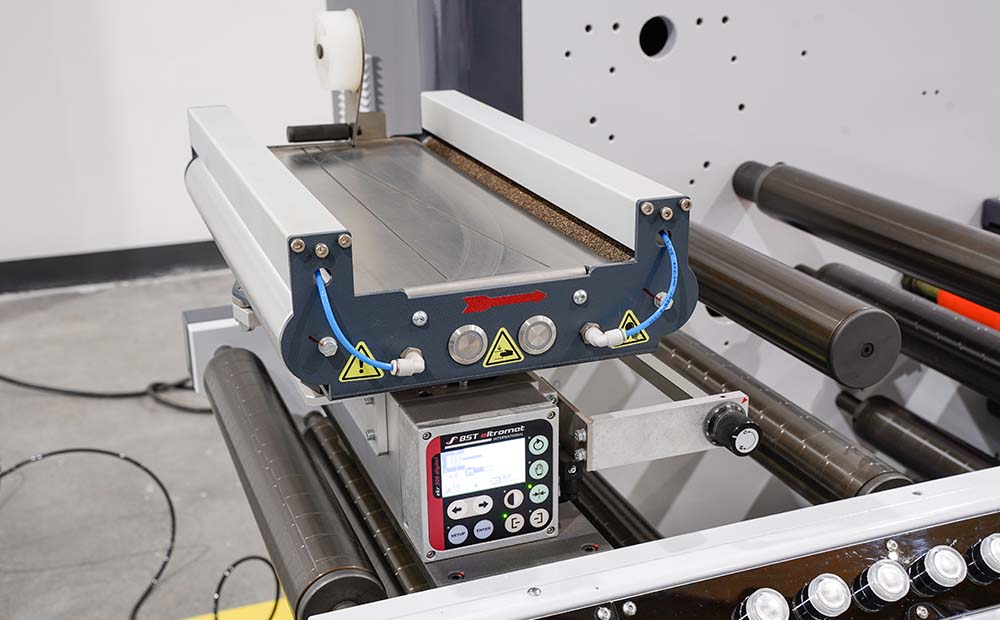

Characters: 1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor. 2. FullServo driven with exact web tension control,easy to operate,Minimizes waste. 3.Internet fault diagnostics. 4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc. 5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
