1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
TechnicalParameter:
|
NO. |
Purchase Items included in the offer |
UNIT |
|
1 |
Unwind with servo driven |
1 |
|
2 |
BST webguide(Edge position control) |
1 |
|
3 |
Flat bed silk screen printing(Register sensor) |
1 |
|
4 |
11.2kw UV dryer (Taiwan UV light) |
1 |
|
5 |
Semi/full rotary die cutting(152T magnetic cylinder) |
1 |
|
6 |
Single rewind (with servo driven) |
1 |
|
7 |
Waste matrix(snow ball design) |
1 |
Characters:
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
TechnicalParameter:
|
Max Paper Width |
330mm |
|
Max Unwinding Dia. |
?700mm |
|
Max Rewinding Dia. |
?700mm |
|
Power Supply |
AV,380V,50HZ |
|
Air supply |
0.4~0.6MPa |

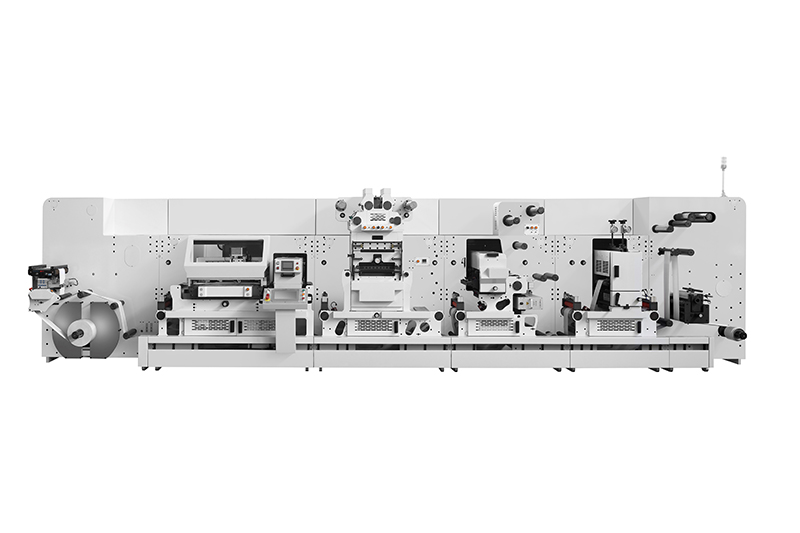

PLUS330 consists of following modules:
(Module 1)
UNWINDER WITH BST WEB GUIDE
?Max Web Width 330mm
?Max unwinder dia. standard 700mm(≈2000m)
?Unwind mandrel dia 76mm(3")air expanding
(Module 3)
FLAT BED SCREEN PRINTING DEVICE
?Max speed 80rpm
?Max printing area 300*260mm
?Accuracy ±0.15mm
?Single UV drying system 11.2kw
(Module 4)
SEMI-ROTARY DIE CUTTER DEVICE
?Max Die-cutting Speed (semi-rotary) 60m/min
?Max Die-cutting Speed (full-rotary) 90m/min
?Accuracy of Adhesive Cutting ±0.15mm
?Registration Mark Sensor
(Module 5)
SINGLE REWINDER
?Max rewinder dia. tandard 700mm(≈2000m)
?Rewind mandrel dia 76mm(3")air expanding
(Module 6)
WASTE MATRIX
?Maxrewind dia. 600mm
?Rewind mandrel dia 76mm(3")air expanding
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor. 2. FullServo driven with exact web tension control,easy to operate,Minimizes waste. 3.Internet fault diagnostics. 4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc. 5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters. TechnicalParameter:
1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste
The double-unit trademark die-cutting and hot stamping machine adopts a synchronous transmission mechanism to realize the synchronous movement of the two molding units. A closed transmission chain is used to drive the gripper row to transfer the paper to two molding units in turn to achieve hot stamping, creasing or die cutting processes.
Unwind-Max unwind dia.700mm; Air expanding mandrel 3" Web guide-Maxcess Web guide ( Edge position control ) Flat bed die cutting-Eye mark sensor, height of the blade 9.5mm ( with upper blade and the bottom blade ) Rewind-Single rewind, Max unwind dia.700mm; Air expanding mandrel 3" Waste matrix-Max unwind dia.600mm; Air expanding mandrel 3"
