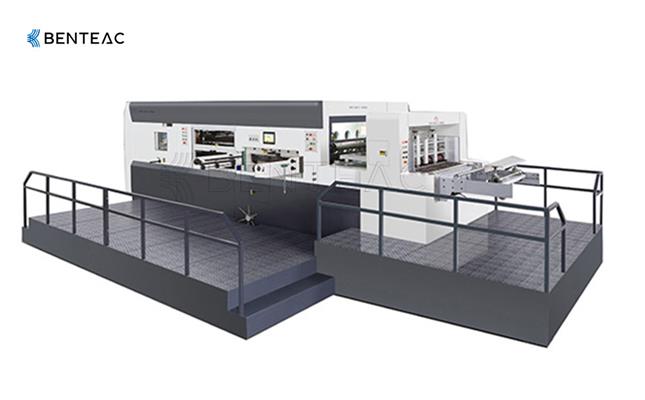

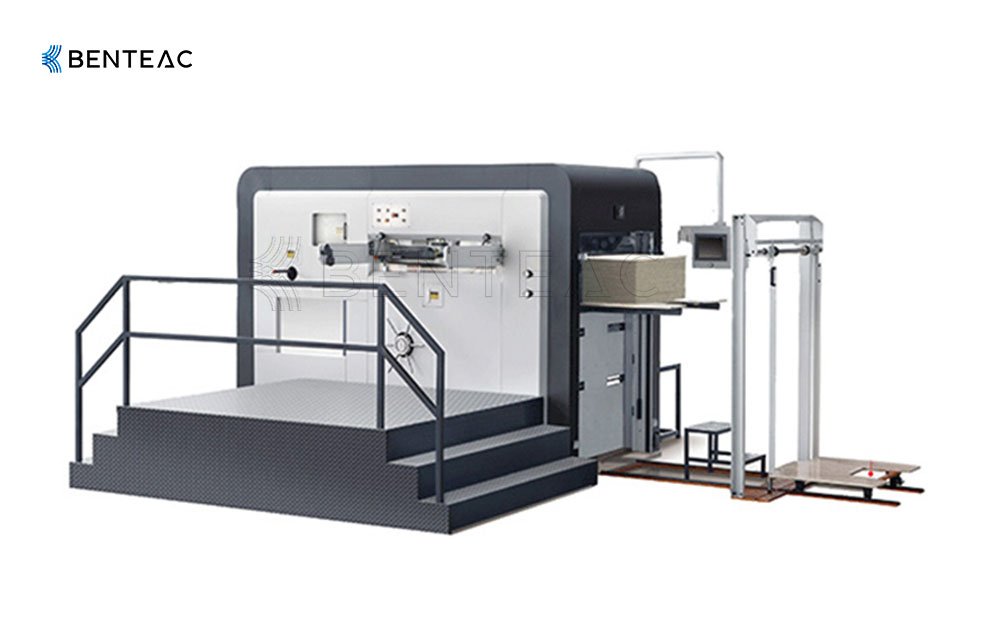

The semi-automatic die cutting machine has the characteristics of fast operation, high safety and easy operation. Is 250-1000g/㎡ cardboard and die cutting ≤8mm corrugated paper die cutting or embossing ideal equipment. The size is 1330×980 and the minimum size is 580×480. The die cutting pressure can reach 300T, and the minimum clamp end is 8mm. Max. It produces 4,200 sheets per hour. It has the advantages of fast speed and stable performance..
Brief Introduction：
The semi-automatic die cutting machine has the characteristics of fast operation, high safety and easy operation. Is 250-1000g/㎡ cardboard and die cutting ≤8mm corrugated paper die cutting or embossing ideal equipment. The size is 1330×980 and the minimum size is 580×480. The die cutting pressure can reach 300T, and the minimum clamp end is 8mm. Max. It produces 4,200 sheets per hour. It has the advantages of fast speed and stable performance.
|
Max. Sheet size |
1330 x 980 mm |
|
Min. Sheet size |
580 x 480 mm |
|
Max. Feeder pile height |
1300mm |
|
Max. Delivery pile height |
1200mm |
|
Max. Die cutting size |
1300 x 950 mm |
|
Die cutting plate size |
1330 x1026 mm |
|
Cutting rule height |
23.8mm |
|
Stock Range |
Paper250~2000g/m2,corrugate thickness≦8mm（F,E,B) |
|
Die cutting accuracy |
≤ ± 0.5mm |
|
Max. Die cutting speed |
300 T |
|
Max. Die cutting speed |
4200 Sheet/Hour |
|
Min. Holding max-width='100%' width |
8 mm |
|
Air requirement |
Gas displacement 0.36m3/min,discharge pressure:0.6-0.7Mpa |
|
Power required |
Three phase 380V/50HZ |
|
Overall power |
17 kw |
|
Net weight approx |
16 T |
|
Overall dimension |
6100x4550x2400mm（include workbench、pre-piling trolley） |

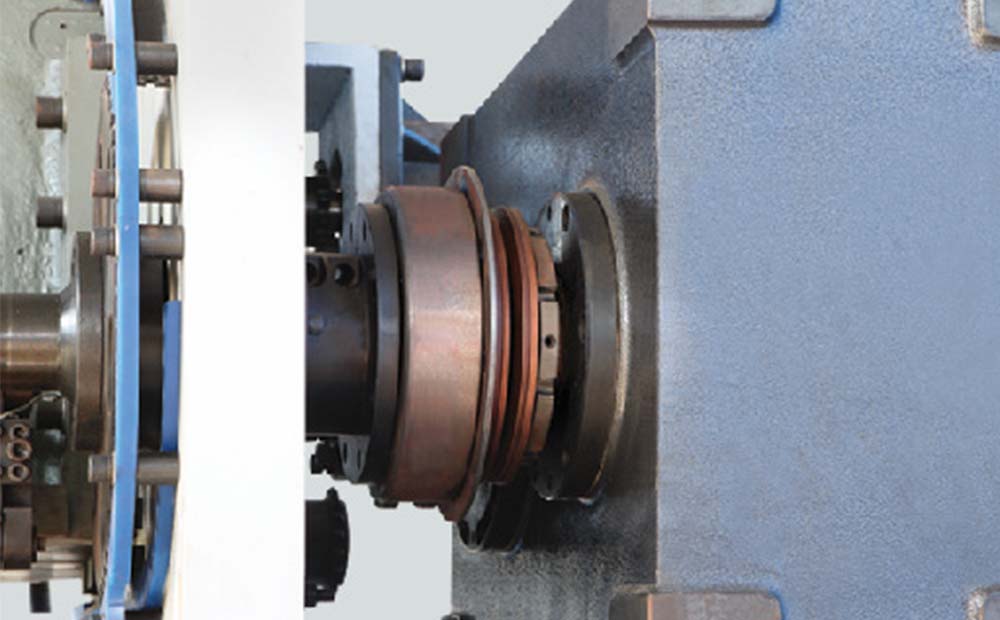

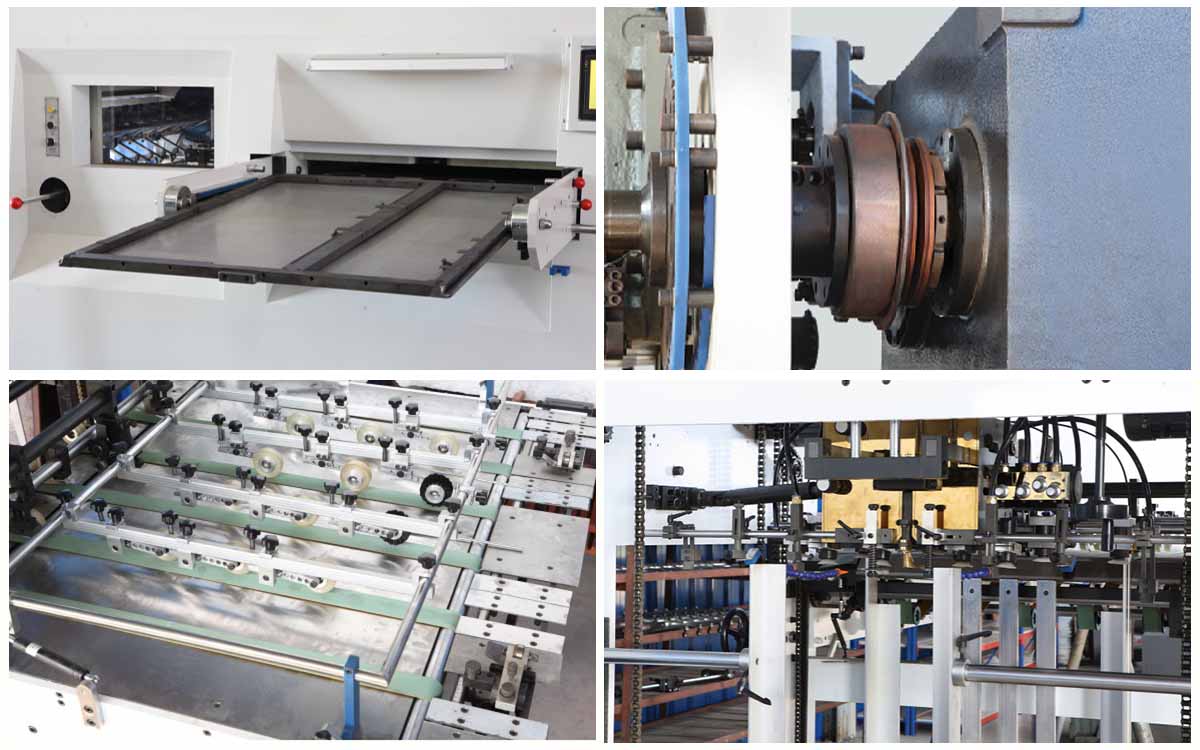

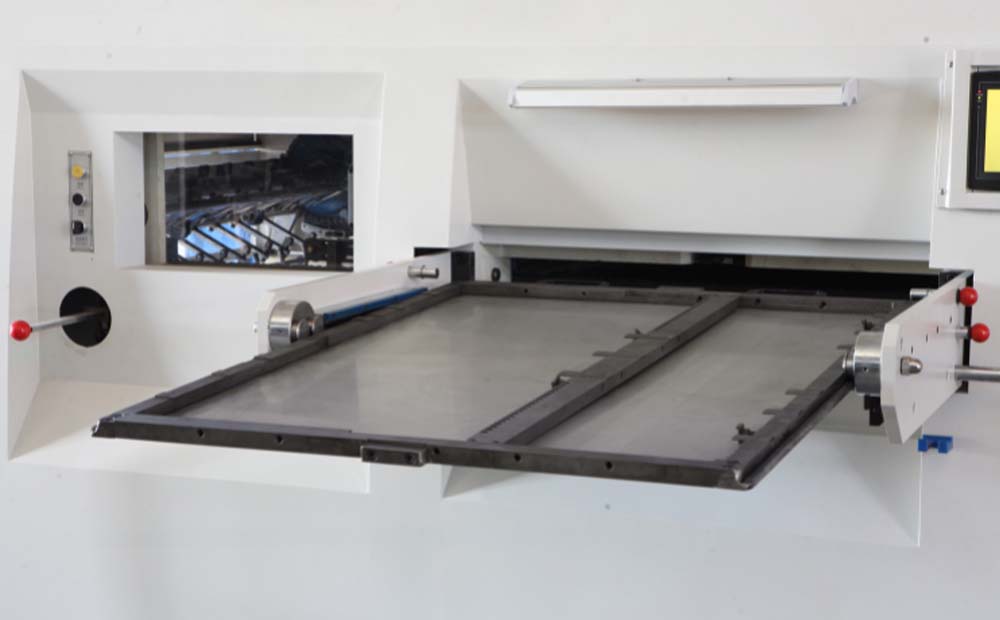

Machine Detail Pictures:
Brief Introduction： Flat die strip stripping is paper, industrial cooling system to ensure the electrical component performance lasting stability. The machine has the advantages of compact and beautiful structure, high degree of automation, easy operation and stable performance.ts.
The semi-automatic die cutting machine has the characteristics of fast operation, high safety and easy operation. Is 250-1000g/㎡ cardboard and die cutting ≤8mm corrugated paper die cutting or embossing ideal equipment. The size is 1330×980 and the minimum size is 580×480. The die cutting pressure can reach 300T, and the minimum clamp end is 8mm. Max. It produces 4,200 sheets per hour. It has the advantages of fast speed and stable performance..
