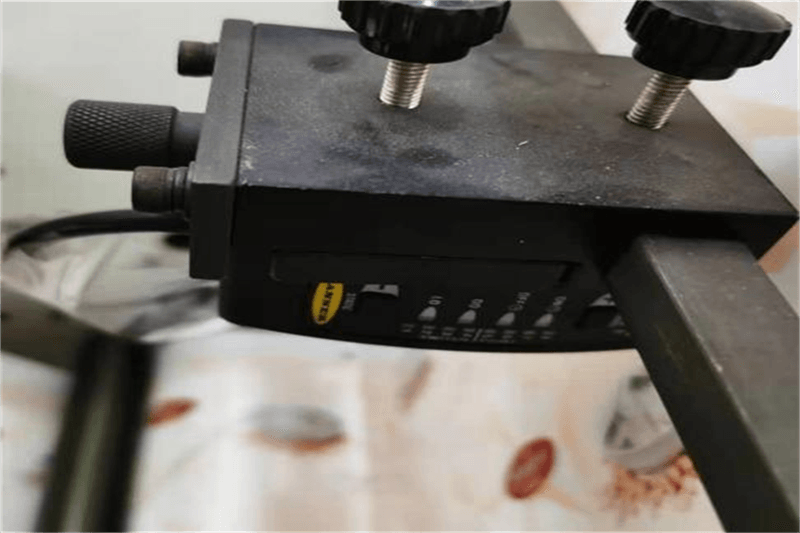

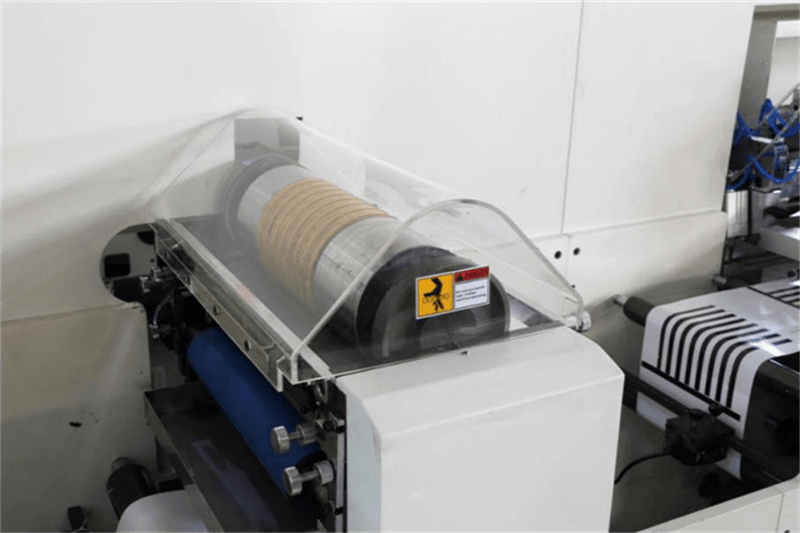

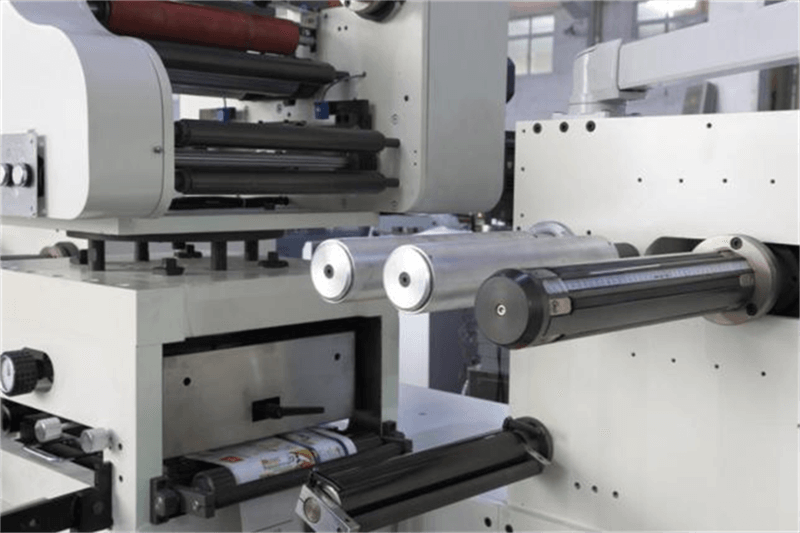

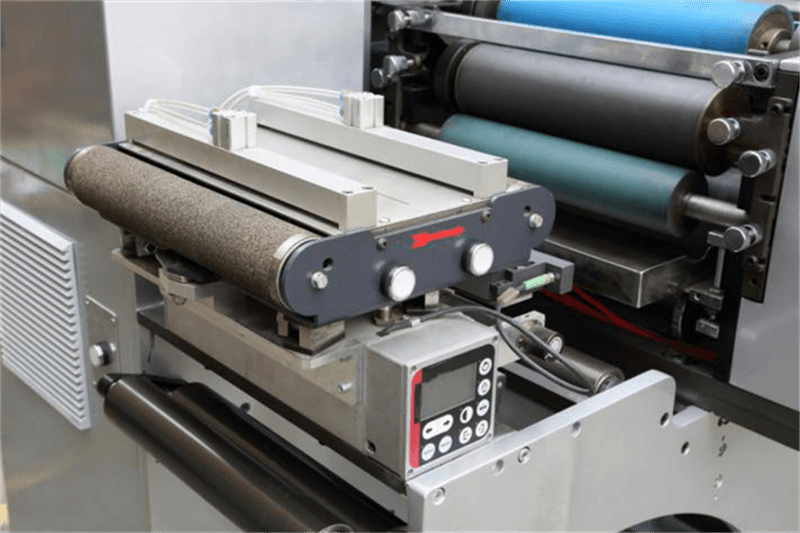

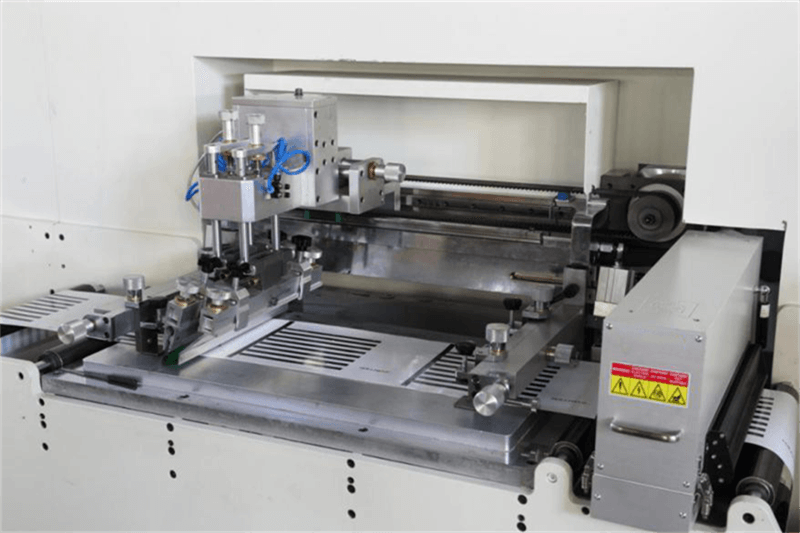

BST webgui :unwinder with closed - loop tension control , electronic web guide with ultrasonic edge guide sensor hot stamping unit: Horizontal/vertical 90°rotating and adjustable stamping The sliding axis controls the material, and multiple rolls of material can be stamping at the same timeSnowable waste collection : very good solution for un normal shape label after die cutter , won’t brake when do waste collection process Slitting device with ten round knife euqipped . minmimum slit width 17mm . Double rewinder Italy brand colful tracking sensor to moniting register ten lins Servo driver controlled Sheet device , PLC control the sheet length Semi rotary flexo unit : full servo driver controlled , can do semi rotary &rotary two method running , 152Z printing cylinder equipped , 1.7mm /1,14 plate thickness use , o,38 mm adhesive tapes .Silk screen unit . Semi rotary & rotary die cutter device , Magnetic cylinder in 152Z. All imported Main electrcia parts including panasonic servo motor & driver , Trio UK PLC and etc .

1. Mother reel end photocell with automatic stop. 2. Full rotary flexo printing module support sport varnishing/cold foil 3. Die cut unit able to work full rotary mode and semi rotary mode. 4. Precision cutting to reduce waste

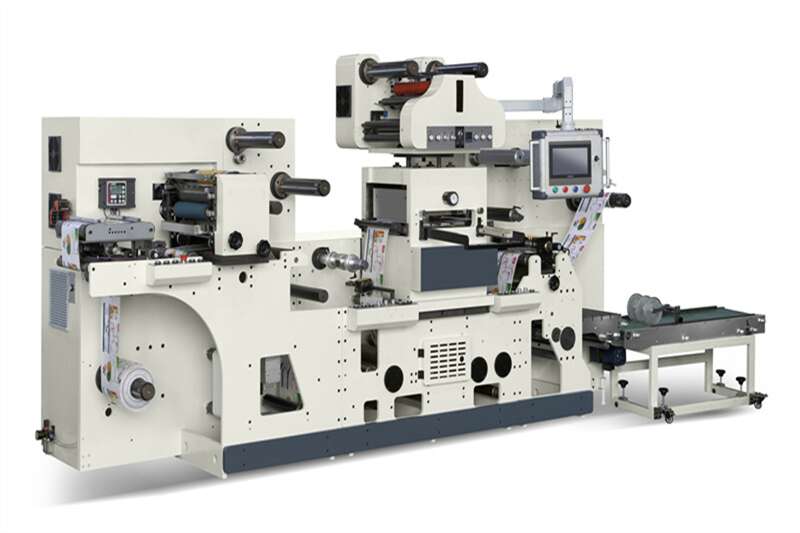

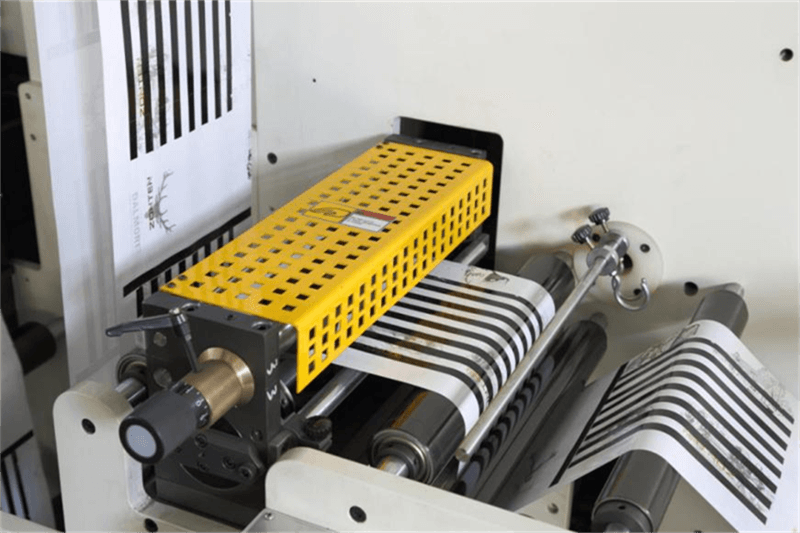

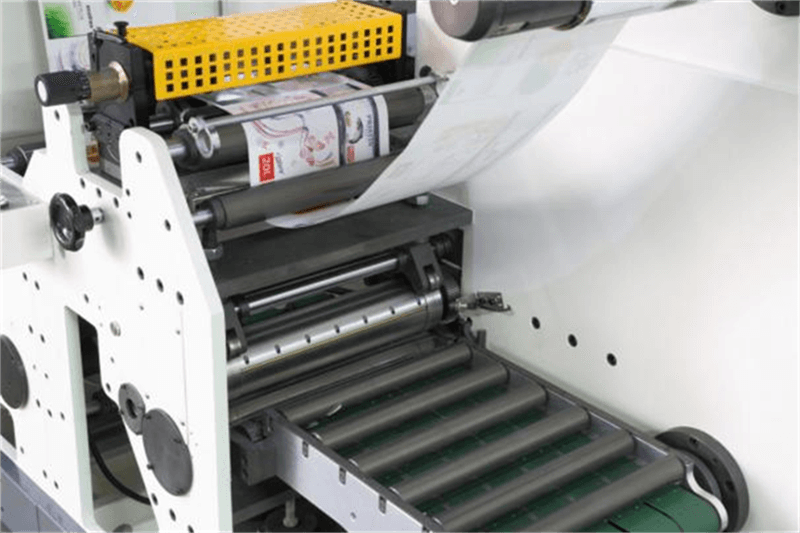

It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
