1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
TechnicalParameter:
|
NO. |
Purchase Items included in the offer |
UNIT |
|
1 |
Unwind with servo driven |
1 |
|
2 |
BST webguide(Edge position control) |
1 |
|
3 |
Flat bed silk screen printing(Register sensor) |
1 |
|
4 |
11.2kw UV dryer (Taiwan UV light) |
1 |
|
5 |
Semi/full rotary die cutting(152T magnetic cylinder) |
1 |
|
6 |
Single rewind (with servo driven) |
1 |
|
7 |
Waste matrix(snow ball design) |
1 |
Characters:
1.Unwinder withClosed loop tension control.Electronic web guide with ultrasonic edge guide sensor.
2. FullServo driven with exact web tension control,easy to operate,Minimizes waste.
3.Internet fault diagnostics.
4.This is modular design which can be combined with Flexo station,Flat bed silk screen and hotfoil station and etc.
5.One single pass ,improving the finishing quality,ensuring better results and better productivity for converters.
TechnicalParameter:
|
Max Paper Width |
330mm |
|
Max Unwinding Dia. |
?700mm |
|
Max Rewinding Dia. |
?700mm |
|
Power Supply |
AV,380V,50HZ |
|
Air supply |
0.4~0.6MPa |

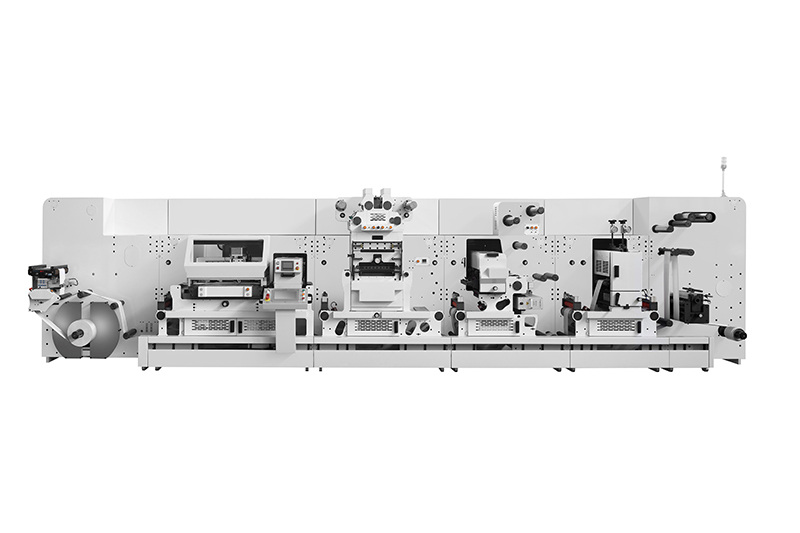

PLUS330 consists of following modules:
(Module 1)
UNWINDER WITH BST WEB GUIDE
?Max Web Width 330mm
?Max unwinder dia. standard 700mm(≈2000m)
?Unwind mandrel dia 76mm(3")air expanding
(Module 3)
FLAT BED SCREEN PRINTING DEVICE
?Max speed 80rpm
?Max printing area 300*260mm
?Accuracy ±0.15mm
?Single UV drying system 11.2kw
(Module 4)
SEMI-ROTARY DIE CUTTER DEVICE
?Max Die-cutting Speed (semi-rotary) 60m/min
?Max Die-cutting Speed (full-rotary) 90m/min
?Accuracy of Adhesive Cutting ±0.15mm
?Registration Mark Sensor
(Module 5)
SINGLE REWINDER
?Max rewinder dia. tandard 700mm(≈2000m)
?Rewind mandrel dia 76mm(3")air expanding
(Module 6)
WASTE MATRIX
?Maxrewind dia. 600mm
?Rewind mandrel dia 76mm(3")air expanding
BST webgui :unwinder with closed - loop tension control , electronic web guide with ultrasonic edge guide sensor hot stamping unit: Horizontal/vertical 90°rotating and adjustable stamping The sliding axis controls the material, and multiple rolls of material can be stamping at the same timeSnowable waste collection : very good solution for un normal shape label after die cutter , won’t brake when do waste collection process Slitting device with ten round knife euqipped . minmimum slit width 17mm . Double rewinder Italy brand colful tracking sensor to moniting register ten lins Servo driver controlled Sheet device , PLC control the sheet length Semi rotary flexo unit : full servo driver controlled , can do semi rotary &rotary two method running , 152Z printing cylinder equipped , 1.7mm /1,14 plate thickness use , o,38 mm adhesive tapes .Silk screen unit . Semi rotary & rotary die cutter device , Magnetic cylinder in 152Z. All imported Main electrcia parts including panasonic servo motor & driver , Trio UK PLC and etc .
The double-unit trademark die-cutting and hot stamping machine adopts a synchronous transmission mechanism to realize the synchronous movement of the two molding units. A closed transmission chain is used to drive the gripper row to transfer the paper to two molding units in turn to achieve hot stamping, creasing or die cutting processes.
It uses an accurate rotary die-cutting system and performs material conversion through micro-control. Die cutting, waste rewinding and finished product rewinding are all in one process. Main control PLC and man-machine interface, with functions such as edge detection and watch detection. The cutting system uses magnetic powder clutch and magnetic powder brake to control the synchronization of cutter and die cutting. Separate waste motor control.
（1） Unwinding adopts cold ring tension control, electronic BST paper guide with ultrasonic edge guide sensor （2） The die-cutting station adopts independent Panasonic servo drive control, which can run in two states of half rotation and rotation. （3） Slitting device with two rewinding shafts （4） Combination function, can add semi-rotary flexo printing unit, realize flexo uv varnish + semi-rotary die cutting + slitting at one time. （5） Independent electric box control, movable touch screen control. （6） The rotary die-cutting machine supports remote control. Any software problems can be solved directly with a laptop computer.
